Flanges

FLANGES

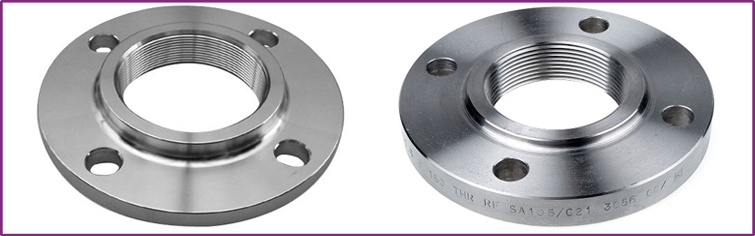

SCREWED FLANGES

We are one of the leading manufacturer of screwed flanges in India, we can supply stainless steel screwed flanges, carbon steel screwed flanges and nickel alloy screwed pipe flanges, the method includes forging and casting. Also, we can produce as per your drawings and specifications.

Size Weight (kg)
Flange Table x Thread
"D" – 3" 3" BSP 2.7
"D" – 4" 4" BSP 3.7
"D" – 5" 5" BSP 4.7

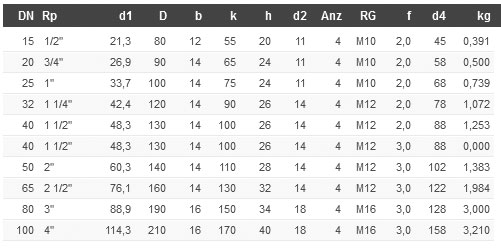

Dimensions

DIN/EN - PN 6

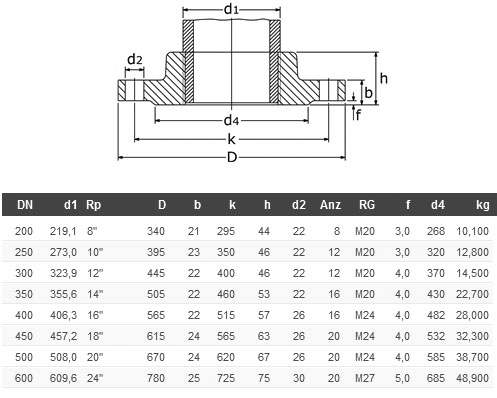

DIN/EN - PN 10

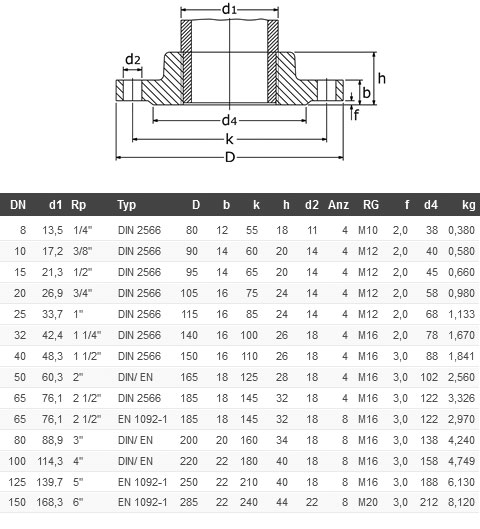

DIN/EN - PN 16

DIN/EN - PN 40
