FLANGES

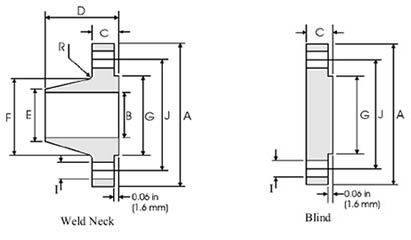

ANSI (ASME) B16.47 SERIES A FLANGE (MSS SP44)

We are involved in offering a quality range of Industrial Flanges, which is high in durability and can withstand extreme conditions. These industrial flanges are available in different grades, class, and other technical specifications as per the client’s requirements. Our range is commonly used to connect other threaded components in low pressure and non-critical applications.

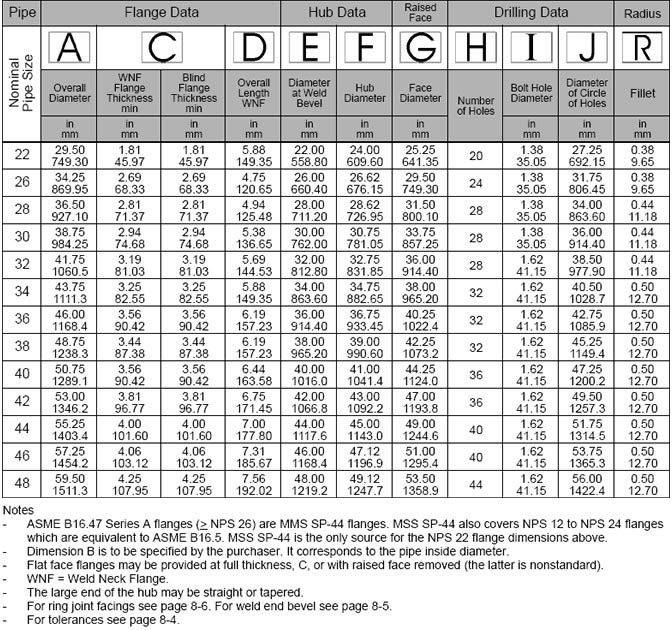

Dimensions & Approximate Masses of ANSI B16.47 A Flange Class 150
